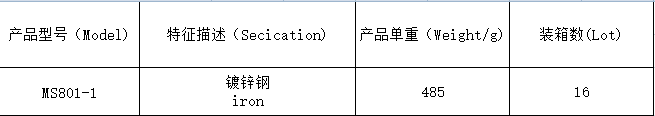

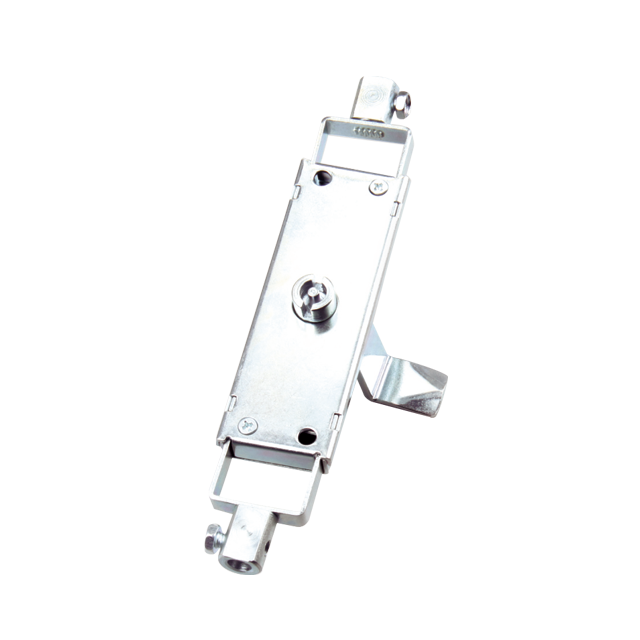

MS801-1

MS801-1
Material: Carbon steel lock body, ABS plastic sleeve
Surface treatment: white zinc plating

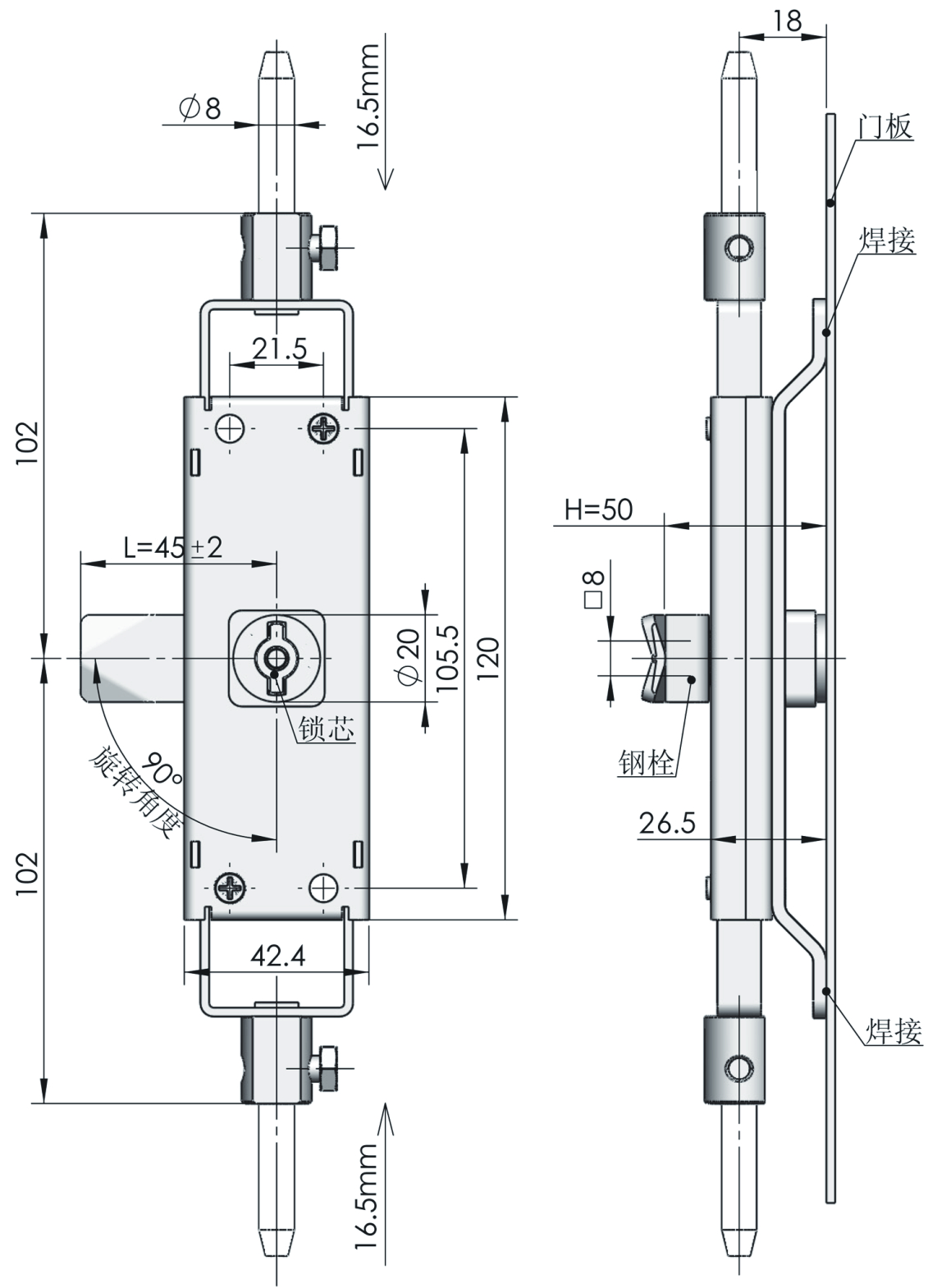

Structure Function: 90-degree rotation of the lock cylinder drives the three-point linkage of the steel bolt and the connecting rod
performance parameter
Maximum static load: 139 N Maximum input torque: 7 N. M
Recommended tightening torque of fixing nut: 4 N. M
