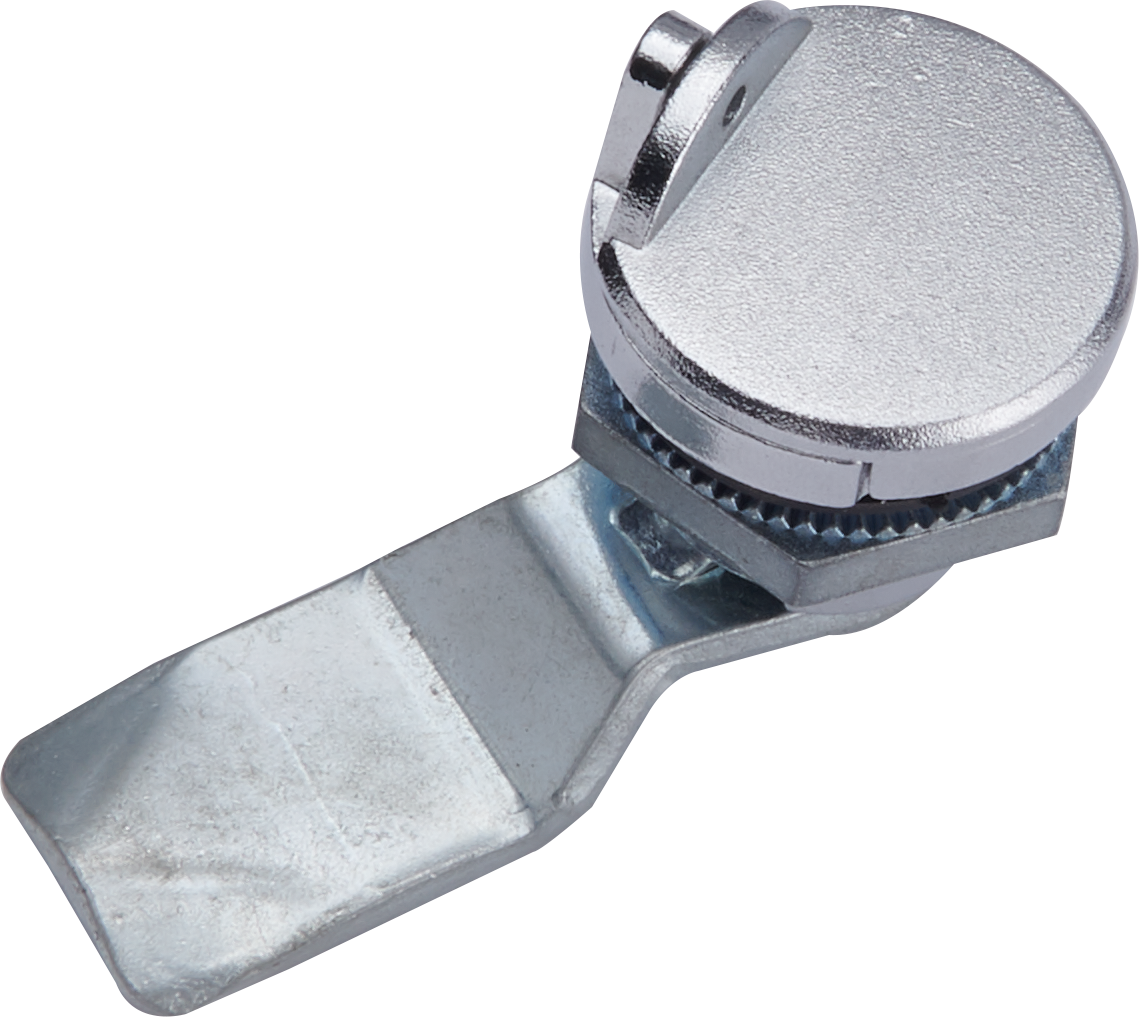

MS705-3A
Material: zinc alloy base, lock core, dust cover, galvanized steel steel bolt
Surface treatment: sandblasted, chrome-plated base, lock core, anti-cap, white zinc-plated steel bolt
Structure description: Rotate 90 °to open or lock
performance parameter
Maximum static load: 270 N
Maximum input torque: 9 N.m
Recommended tightening torque for fixing nuts: 20N.m
